Azure DevOps Integration

Learn about Azure DevOps & Oobeya integration.

Oobeya Azure DevOps addon is compatible with both Azure DevOps Services (cloud) and Azure DevOps Server (TFS2017, TFS2018, TFS2019).

1. Create Azure DevOps Personal Access Token

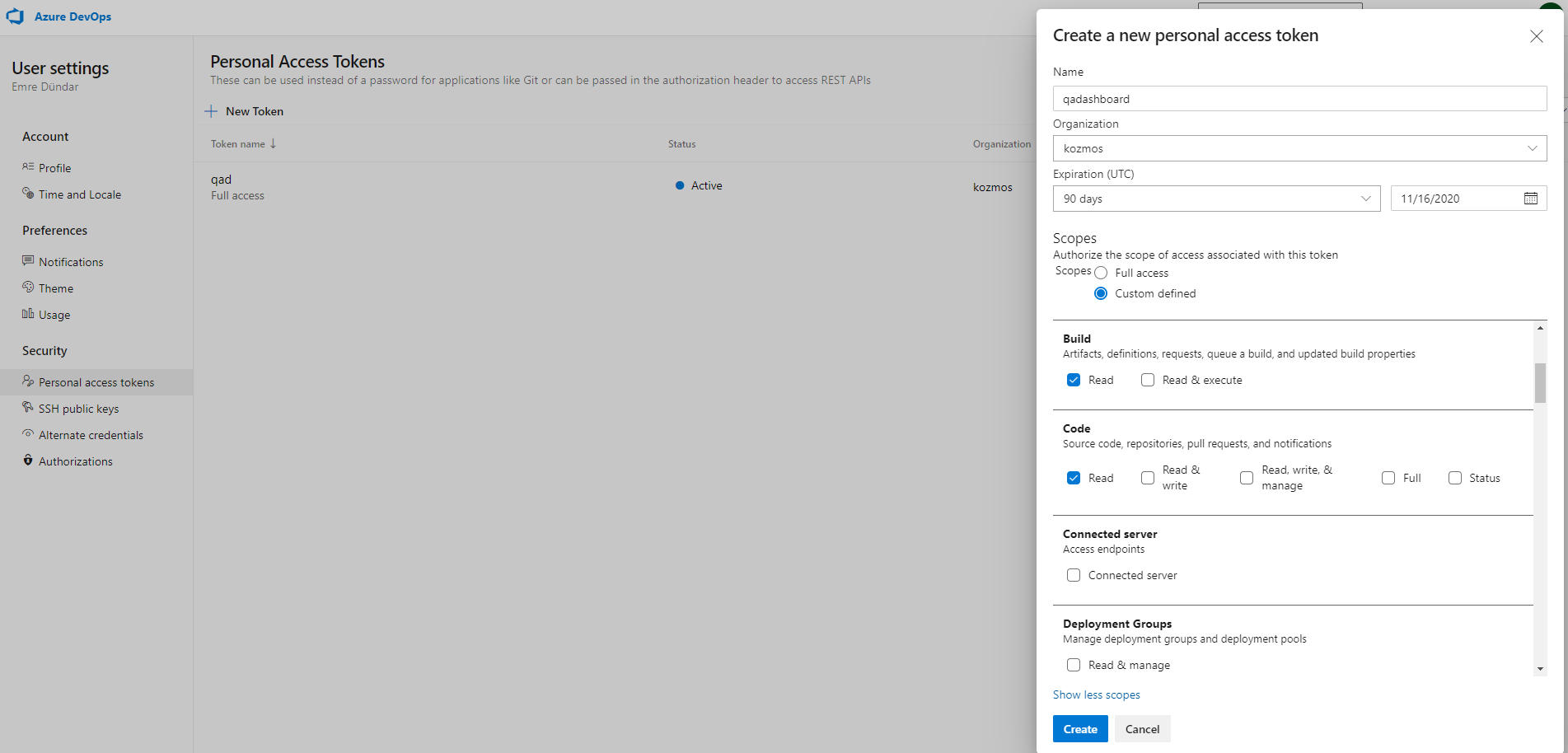

1. Navigate to User Settings and click "Personal Access Tokens".

2. Click the "New Token" button and select read permissions for the connection.

The required permissions are:

  • Build – Read

  • Code – Read

  • Project and Team – Read

  • Pull Request Threads – Read

  • Release – Read

  • Test Management – Read

  • Work Items – Read

3. Copy and save the access token to use it on the Oobeya data source connection.

2. Install Azure DevOps Addon on Oobeya 🧩

  1. Log in to Oobeya with an Administrator account.

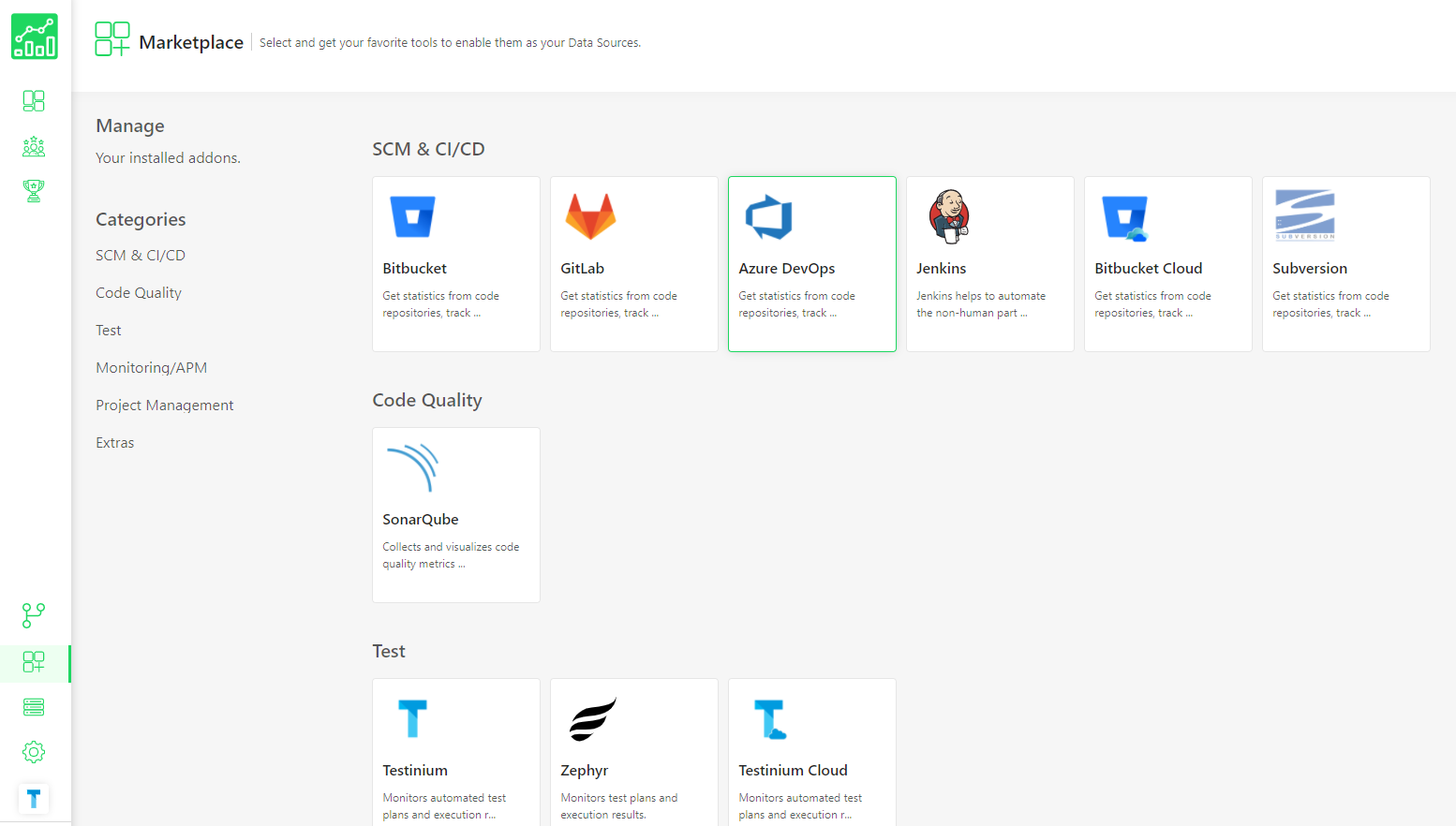

  2. Navigate to Integrations and select the Azure DevOps addon and then click the "Install" button.

3. Add A New Data Source 🔌

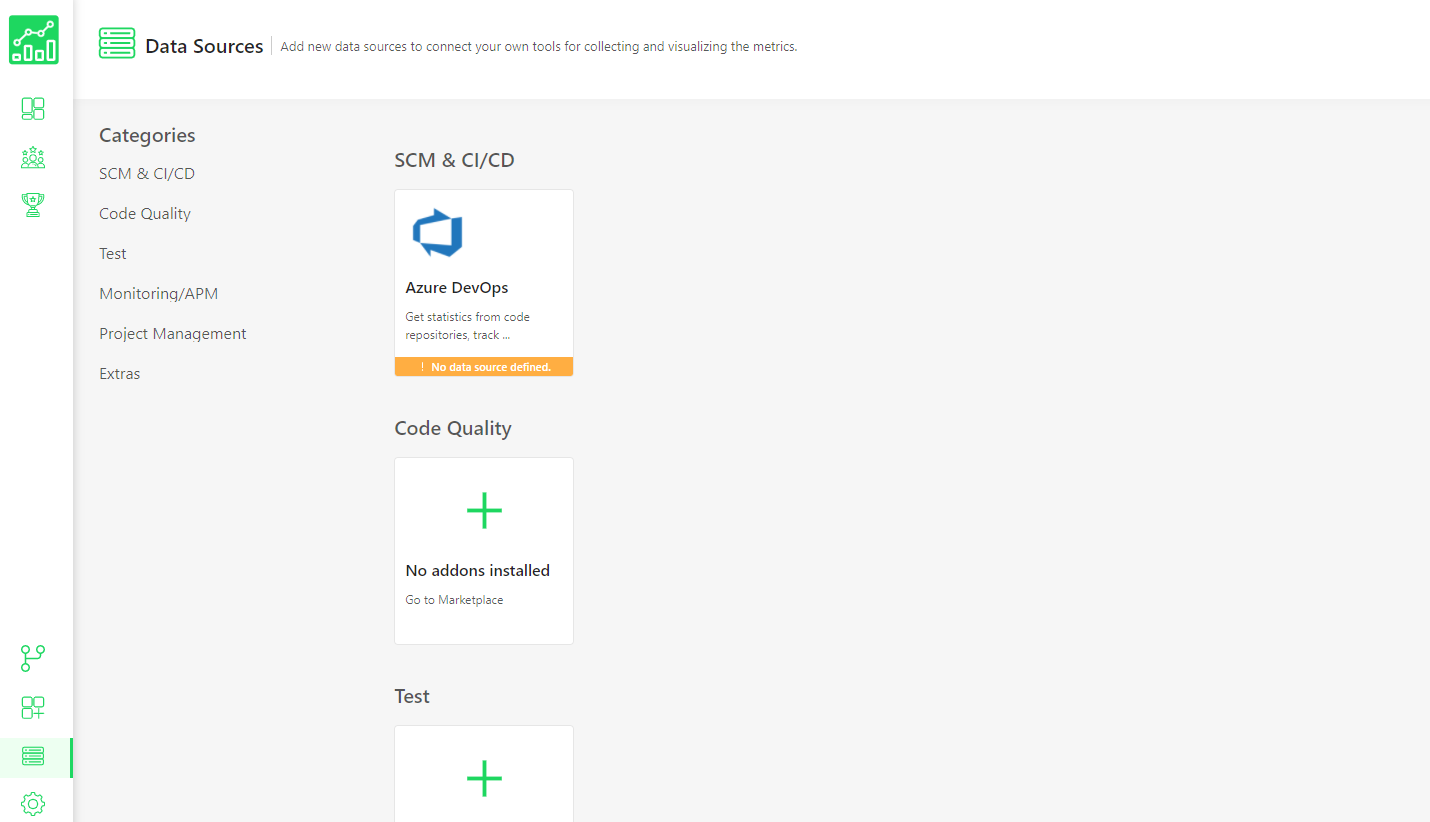

1.Navigate to Data Sources, select Azure DevOps to add a new data source.

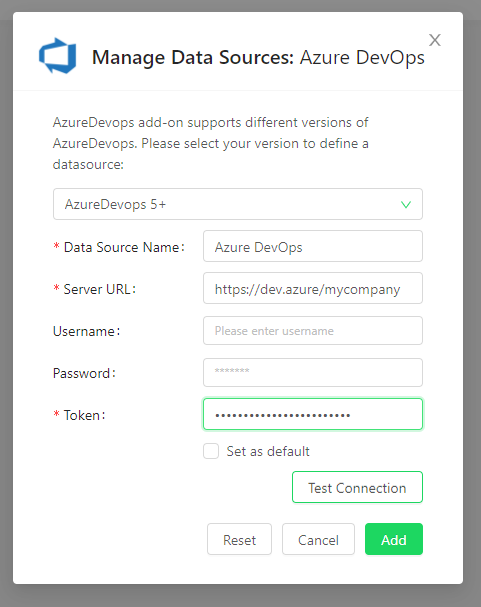

2. Click the "New Data Source" button and fill in the form using the Personal Access Token which was created on Azure DevOps settings in the first step.

Data Source Name: A custom name for your data source (e.g., "Oobeya Azure Data Source").

Server URL: Your Azure DevOps organization’s URL (e.g., https://dev.azure.com/{your-organization})

Token: The Personal Access Token you retrieved earlier.

3. Click the "Test Connection" button to verify the connection.

Ready to Connect 🚀

Now Oobeya is connected with your own Azure DevOps to get the real-time statistics of your code repositories to track each development activity.

Next Steps 🎯
