> For the complete documentation index, see [llms.txt](https://docs.oobeya.io/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://docs.oobeya.io/integrations/all-integrations/scm-addons/step-by-step-integration-instructions-for-the-oobeya-github-application.md). # Step-by-Step Integration Instructions for the Oobeya GitHub Application ## **Option 1:** Using the Official Oobeya GitHub App Utilize the[ official Oobeya GitHub App ](https://github.com/marketplace/oobeya-dora-metrics)available on the GitHub Marketplace to seamlessly integrate [Oobeya](https://oobeya.io) with your GitHub repositories and workflows. Simply install the application from the GitHub App Marketplace, grant the necessary permissions, and select the Oobeya GitHub App option when [creating a data source](/integrations/adding-new-integration/adding-a-new-data-source.md) within Oobeya. This straightforward approach ensures smooth integration and access to [Oobeya's features](https://oobeya.io/oobeya-metric-definitions/). See the step-by-step integration guide below: ### Step 1: Install the Oobeya GitHub App 1. Go to the [Oobeya DORA Metrics GitHub App Marketplace page ](https://github.com/marketplace/oobeya-dora-metrics)and install the application. 2. You will be prompted to choose which repositories to integrate with Oobeya. You can select all repositories or choose specific ones. 3. After selecting the repositories, grant the necessary permissions requested by Oobeya.

Oobeya DORA Metrics GitHub Application

### Step 2: Create a Data Source in Oobeya 1. Navigate to the Oobeya **Data Sources** page. Look for the GitHub integration and select it. 2. When [adding the data source](/integrations/adding-new-integration/adding-a-new-data-source.md) in Oobeya, select "Oobeya GitHub App" as the "version".

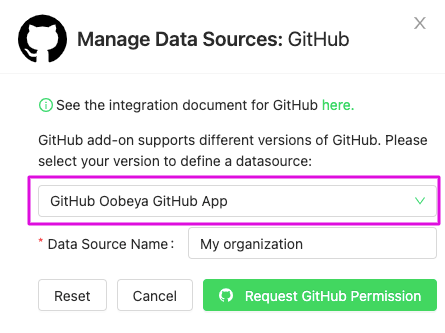

Select Oobeya GitHub App

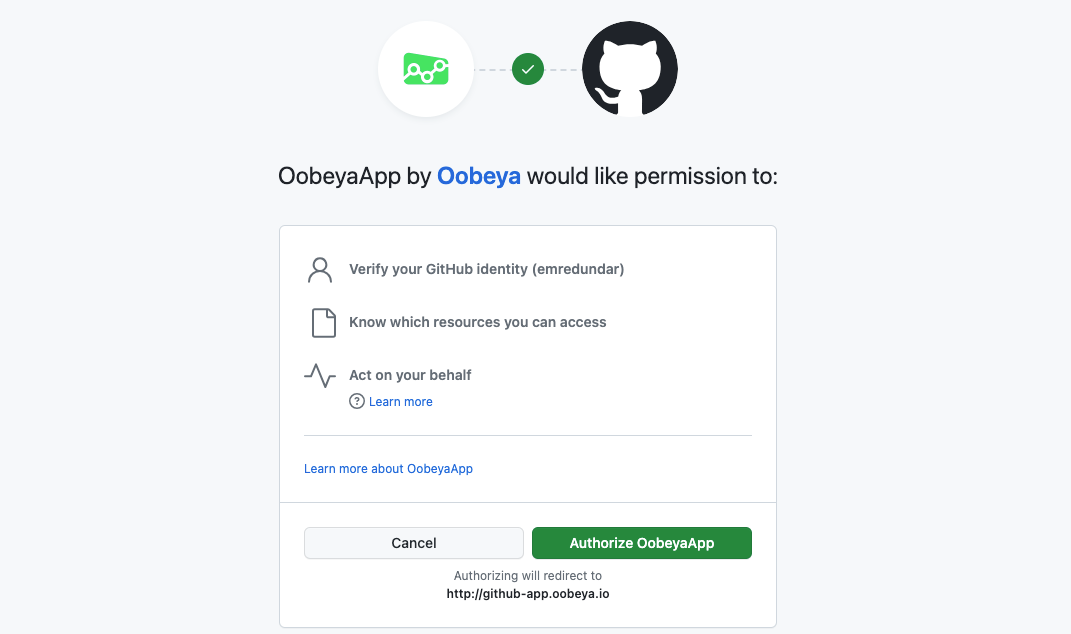

3. Enter the name of the data source. 4. Click the "Request GitHub Permission" button. 5. Grant the required permissions on the GitHub website. Then you'll be redirected to the Oobeya screen.

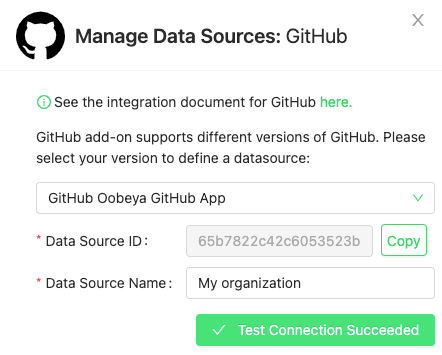

6. Select the newly created data source from the list and click the "Test Connection" button to see if it works properly.

Test Connection

*** ## **Option 2:** Registering Your Own GitHub Application Register your own GitHub Application to integrate with Oobeya for more flexibility and customization. By creating your own GitHub App, you can tailor the integration to suit your specific requirements and preferences. Navigate to your GitHub account settings, register a new GitHub App, configure the required permissions, and specify the Client ID and Client Secret within the Oobeya data source settings. This option offers greater control over the integration process, allowing you to manage the connection between Oobeya and GitHub according to your needs. See the step-by-step integration guide below: ### Step 1: Create a New GitHub App 1. Navigate to the **Settings** page on GitHub. * To register an application for a **personal account**, click on the "Developer settings" tab. * To register an application for an **Organization**, go to the "Organizations" tab from the left menu, then click on the "Settings" button next to the organization name. 2. On the left menu, click on "Developer settings". 3. On the left menu, click on "GitHub Apps". 4. Click on the "New GitHub App" button. 5. Fill in the required fields (GitHub App name, Homepage URL, Callback URL) with your information. * For the **Callback URL** field, enter the following URL: {OOBEYA\_DOMAIN}/api/platform/datasources/github \ (e.g., ). 6. Click the "Save Changes" button to save your changes. 7. Open the "Permissions & events" tab from the left menu and select the following permissions as **"Read-only"** for the Actions, Administration, Code, Deployments, Issues, Members, Metadata, Organization Administration, Organization Events, Organization Projects, and Pull Requests.

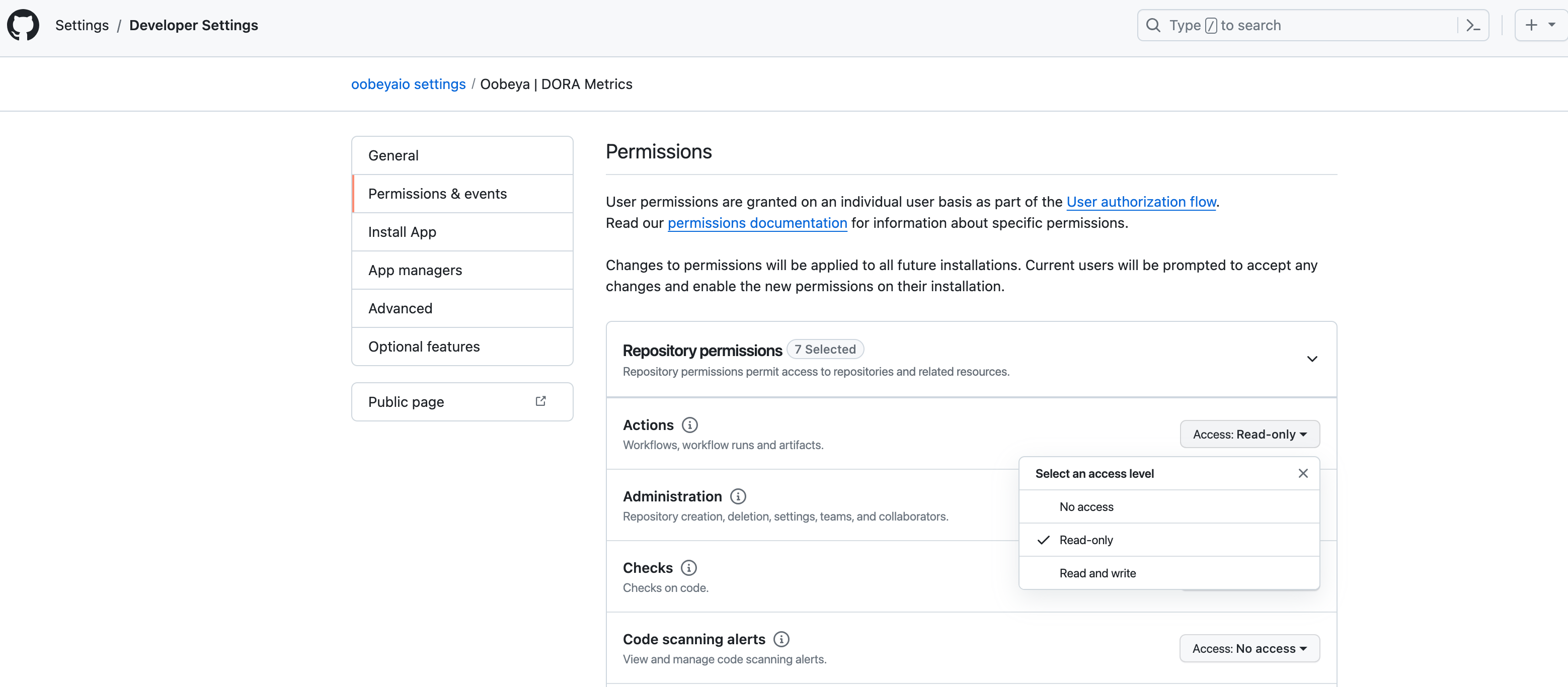

Permissions for your own GitHub App

### Step 2: Integrate the GitHub App with Oobeya 1. Navigate to the Oobeya **Data Sources** page. Look for the GitHub integration and select it. 2. When [adding the data source](/integrations/adding-new-integration/adding-a-new-data-source.md) for GitHub, select **"GitHub Own GitHub App"** as the "version". 3. Enter the **GitHub App Client ID** and **Client Secret** of the newly registered GitHub application. 4. Finally, click the "Request GitHub Permission" button to add the new data source.

Create your own application on GitHub and register it to Oobeya

*** ## **Option 3:** Using a GitHub App Installation Token Integrate Oobeya with GitHub by using an **Installation Token** generated from your own GitHub App. With this option, Oobeya authenticates as the GitHub App installation itself — using the **App ID**, the **Installation ID**, and the App's **private key (.pem)** — instead of an OAuth flow or a user-based Personal Access Token. This option is recommended when: * You do not want the integration to depend on a personal user account or a user's Personal Access Token. * You prefer server-to-server authentication with short-lived tokens that are refreshed automatically. * Your organization restricts OAuth callback URLs, or your Oobeya instance is not publicly reachable from GitHub. {% hint style="info" %} You can use an existing GitHub App or register a new one. If you have already registered your own GitHub App by following [**Option 2**](#option-2-registering-your-own-github-application), you can reuse the same application here — you only need the App ID, the Installation ID, and a private key file. {% endhint %} See the step-by-step integration guide below: *** #### Step 1: Create a New GitHub App (or use an existing one) 1. For this step, follow the same steps mentioned [here](#step-1-create-a-new-github-app). *** #### Step 2: Get the Application ID 1. Open your GitHub App settings page. * Organization app example: `https://github.com/organizations/{ORGANIZATION}/settings/apps/{APP_NAME}`\ (e.g., ). * Personal account app: **Settings > Developer settings > GitHub Apps >** click "Edit" next to your app. 2. On the "General" tab, find the **"App ID"** value in the "About" section (e.g., `123456`)., 3. Copy this value; you will enter it into the **Application ID** field in Oobeya.
{% hint style="warning" %} The **App ID** and the **Client ID** are different values. For the Installation Token integration, Oobeya requires the numeric **App ID**, not the Client ID (`Iv1.xxxxxxxx` / `Iv23xxxxxxxx`). {% endhint %} *** #### Step 3: Generate a Private Key (.pem) 1. On the GitHub App "General" tab, scroll down to the **"Private keys"** section. 2. Click the "Generate a private key" button. 3. GitHub will automatically download a `.pem` file to your computer. Store this file securely; you will upload it to Oobeya in Step 5.
{% hint style="info" %} GitHub shows the private key only once, at the moment it is generated. If the `.pem` file is lost, you cannot download it again — generate a new private key instead. Each generated key is listed with its SHA256 fingerprint and remains valid until you delete it, so it is a good practice to delete the keys you no longer use. {% endhint %} *** #### Step 4: Install the GitHub App and Get the Installation ID 1. On your GitHub App settings page, click "Install App" from the left menu, then install the application on your organization or personal account. 2. You will be prompted to choose which repositories to integrate with Oobeya. You can select all repositories or choose specific ones. 3. Open the installation configuration page to read the **Installation ID**: * For an **Organization**: **Organization Settings > GitHub Apps >** click "Configure" next to the app. * For a **personal account**: **Settings > Applications > Installed GitHub Apps >** click "Configure" next to the app. 4. Check the browser address bar. The last number in the URL is your **Installation ID**:\ `https://github.com/organizations/{ORGANIZATION}/settings/installations/98765432`\ In this example, the Installation ID is `98765432`. *** #### Step 5: Create the Data Source in Oobeya 1. Navigate to the Oobeya **Data Sources** page. Look for the GitHub integration and select it. 2. When adding the data source for GitHub, select **"GitHub Installation Token"** as the "version". 3. Fill in the following fields: * **Data Source Name:** A descriptive name for the data source (e.g., `GitHub - Oobeya Org`). * **Application ID:** The App ID you copied in Step 2 (e.g., `123456`). * **Installation ID:** The Installation ID you copied in Step 4 (e.g., `98765432`). * **Private Key (.pem):** Drag and drop the `.pem` file you downloaded in Step 3 into the upload area, or click the area to select the file. 4. Click the "Test Connection" button to verify that the credentials are valid. 5. Once the connection test is successful, click the "Add" button to save the data source.
{% hint style="info" %} Oobeya uses the App ID and the private key to generate a short-lived installation access token for the given Installation ID, and refreshes it automatically. You do not need to renew any token manually. {% endhint %} *** ## Troubleshooting * If you encounter issues with the integration, check the permissions granted during the installation process. Ensure Oobeya has access to the necessary data. * Consult the Oobeya support documentation or contact the Oobeya support team or your assigned Customer Success Engineer for specific issues related to the Oobeya platform. *** ## **What's Next? 🎯** By following these instructions, you will be able to effortlessly integrate the Oobeya GitHub Application into your Oobeya account. This integration will greatly enhance your development workflow by providing you with valuable metrics and data, including [DORA metrics](https://oobeya.io/dora-metrics-four-key/) and [pull request metrics](https://oobeya.io/oobeya-metric-definitions/). If you are not using Oobeya, feel free to [contact us](https://oobeya.io/contact/) to learn more about Oobeya GitHub integration and explore Oobeya's powerful DORA Metrics tool. ## **Next Steps** :dart: * [Network Access Requirements ](/integrations/network-access-requirements.md) * [Create a new Gitwiser Analysis](/gitwiser-repo-analytics/settings-for-git-analytics/initialize-development-analytics.md)
